Aopen KF45 Case w/ 250W PSU
The features
Click to enlarge...

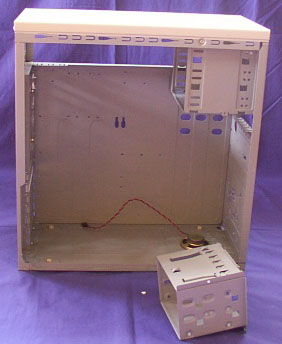

You can see two things in this picture (maybe more, but i'm only going to talk
about two in this paragraph :D) One is the PC Speaker; no changes here, average
run of the mill PC speaker and it is located at the bottom of the case where
it is out of the way. Has factory pressed ventilation holes and hence is easy
to hear from outside the case (the case has the average rubber feet so sits
slightly off the ground). The second is the 3.5" Internal Drive bay.
A lot of manufacturers are beginning to include removable 3.5" Internal
Drive bays in their cases, and Aopen are no exception. Simply remove one screw
on the side of the bay and then slide the bay towards the back of the case.
Next add your hard drive of choice (nothing special in our situation, just a
1.2GB Western Digital Caviar) and other devices then put the bay back in the
case (in the reverse way to how it was removed).
Click to enlarge...
Here you see the drive bay being screwed back into the case. The bay is actually
quite well held in place once it is screwed in and will not fall off while your
case is in transit. This may be a good time to point out that all the screw
holes have little scribed labels explaining what their typical use is - ie HDD
HDD then FDD FDD FDD. I'd take a photo of this but my crappy camera (Kodak DC3200)
can't focus on anything within 1m (as you can see from the enlarged version
of the above photo).
While we are on the subject of labels, lets take a closer look at the motherboard
tray.
