Review Date: 23rd October 2002 Reviewed By: Michael "Hughesey" Hughes Product: Topower B030 Midi ATX Server Case Rating: 93% Manufacturer: Topower Computers Supplier: EYO Technologies

MORE Features

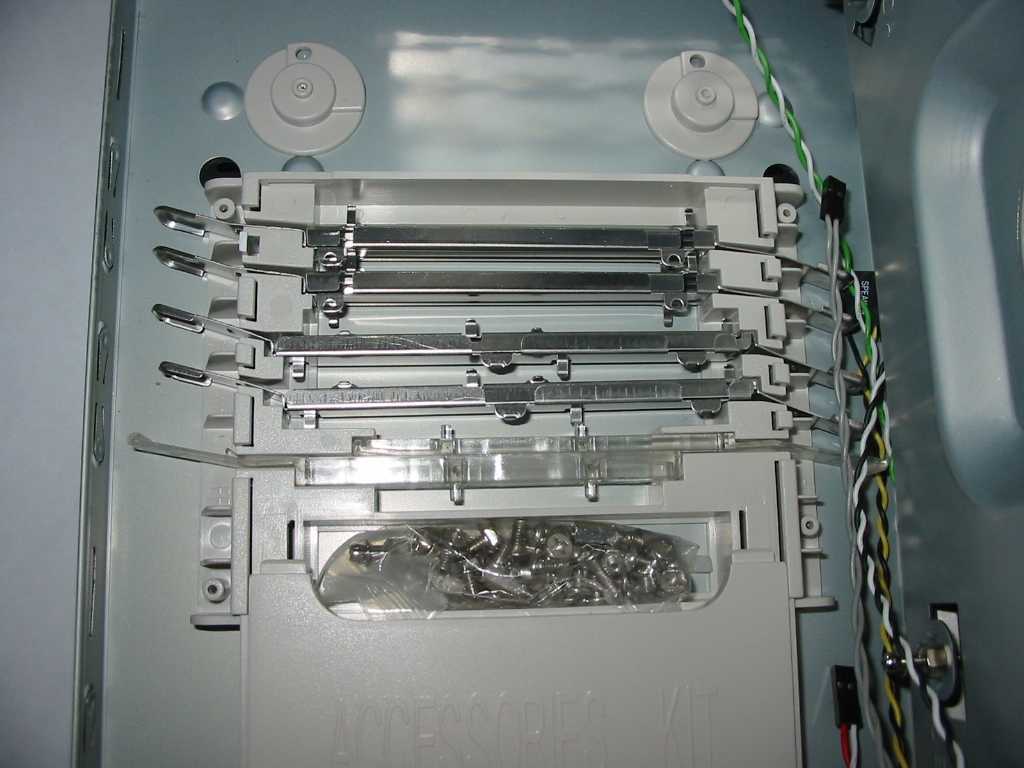

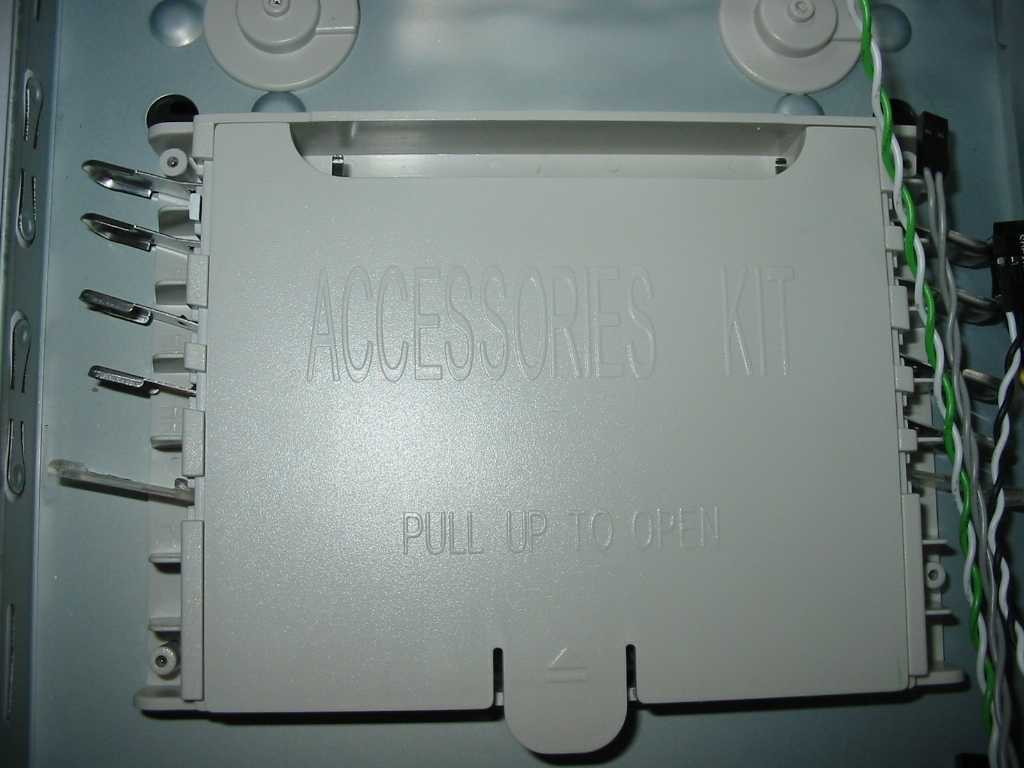

Above we can see the Accessory Kit which is attatched to the bottom of the B030 case. Inside are all the drive rails and screws you'll need to use this case. This is a great idea as keeping them in a neat little compartment within the case prevents them from getting lost.

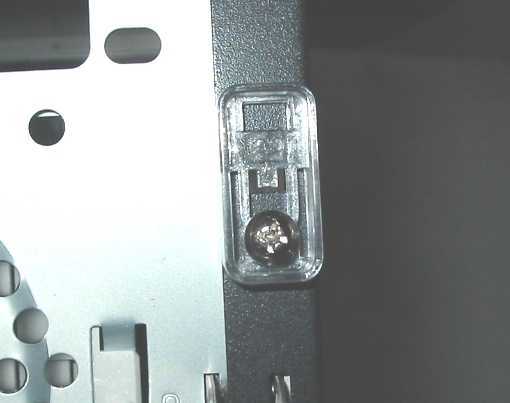

The case is also branded as 'screwless', meaning that in the everyday use of the case, one shouldnt have to unscrew any screws. Pictured above is an example of the locking mechanism that is used to secure the case side to the chassis. It works by pushing a small lug into a slot on the chassis, rather than a screw. Such locking mechanisms are found on practically every removable part of the case (both sides and the motherboard tray). These locking mechanisms however do allow for screws to be used, in order to provide a little bit of extra strength, perfect for when the PC has to be moved (eg. to LAN's).

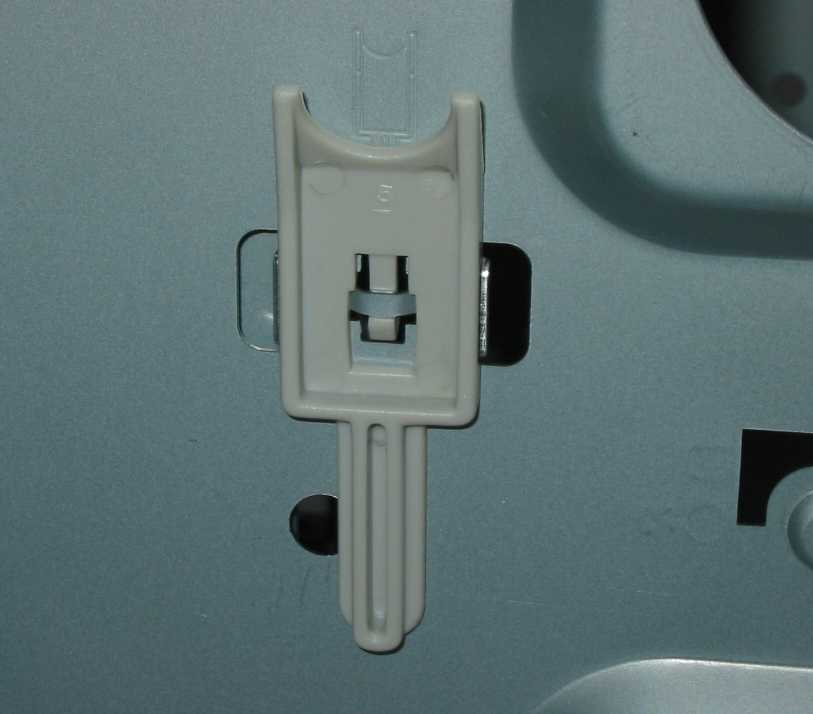

Also pictured above is the unique tool for removing the motherboard. This case has special mounts on the motherboard tray that allow a motherboard to be attached without screws. This is an excellent feature as it speeds up the time that it would take to install/remove a motherboard greatly. Perfect for the addicted upgrader :).

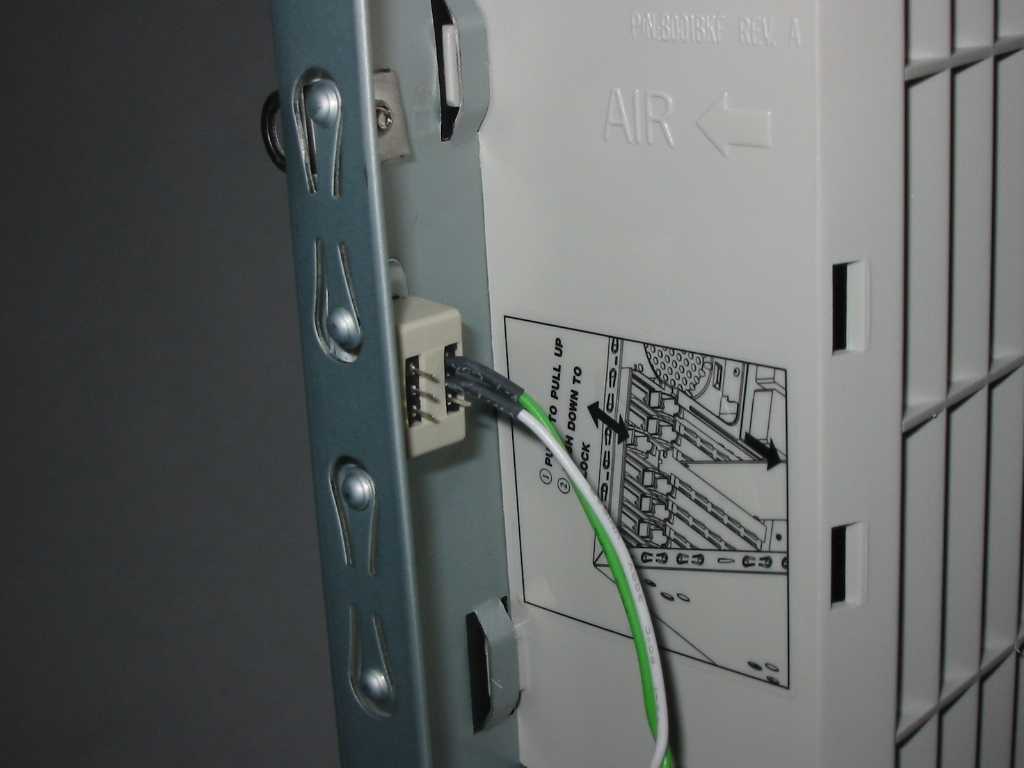

The case also features an intrusion switch. The switch is located at the back of the case, and is depressed when the case side is on, and released when the side is removed. The switch is wired to a simple motherboard header which then simply plugs onto the "Intruder_Detect" header which is found on most modern motherboards. This feature is ideal for the security conscious server admin or LAN'er who requires that little bit extra piece of mind when leaving their PC unattended.

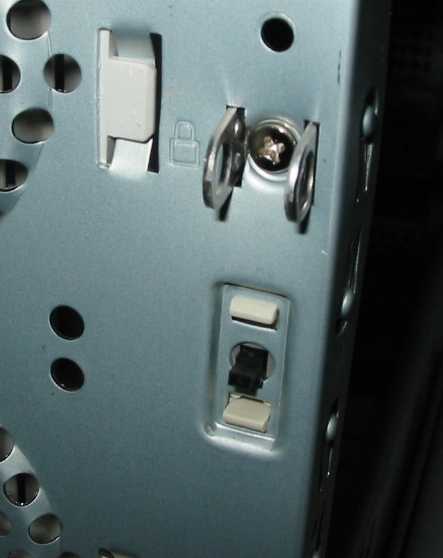

Pictured above is another shot of the intruder detection switch, along with another nifty security feature, a padlock connection. This connection allows for the side of the case to be padlocked on, so that it cannot be removed unless the padlock is removed. Another well thought out security measure which im sure just about every user can appreciate.
